Orion XTender Rack

문의

Modular CATx/Fiber Extender
• 21-Card Chassis

FEATURES

KVM 스테이션 및 컴퓨터 확장
- CATx 케이블을 사용하여 최대 460ft (140m)
- 멀티모드 광섬유를 사용하여 최대 3,300ft (1Km)
- 싱글모드 광섬유를 사용하여 최대 33,000ft (10Km)
백플레인이 장착된 21카드 섀시는 다양한 비디오 및 옵션 카드를 수용
USB 키보드, 마우스, 터치스크린 및 대부분의 HID 장치를 사용하거나 옵션 카드를 사용하여 프린터, 스캐너, 하드 드라이브, 메모리 스틱, 오디오 장치 등을 추가 가능
사용 가능한 비디오 인터페이스:
- 최대 1920×1200@60Hz의 싱글 링크 DVI 비디오
- 최대 4K@30Hz의 듀얼 링크 DVI 비디오
- 최대 1920×1200@60Hz의 케이블 하나를 사용하는 듀얼 헤드 DVI 비디오
- 선택적인 스케일링으로 최대 1920×1200@60Hz의 DVI-I (VGA) 비디오
- 최대 4K@60Hz의 HDMI 비디오
- 최대 4K@60Hz의 DisplayPort 비디오
- 최대 1920×1080p의 SDI 비디오
사용 가능한 다른 인터페이스:
- USB-HID, USB 2.0 및 USB3.0 장치
- PS2 키보드 및 마우스
- 직렬 RS-232 및 RS-422, 최대 115.2Kbaud
- 아날로그 스테레오 마이크 및 스피커
- 디지털 오디오 (Mini-XLR, 동축, 광학)
사용 가능한 다른 옵션:
- 중복 전원
- 중복 링크

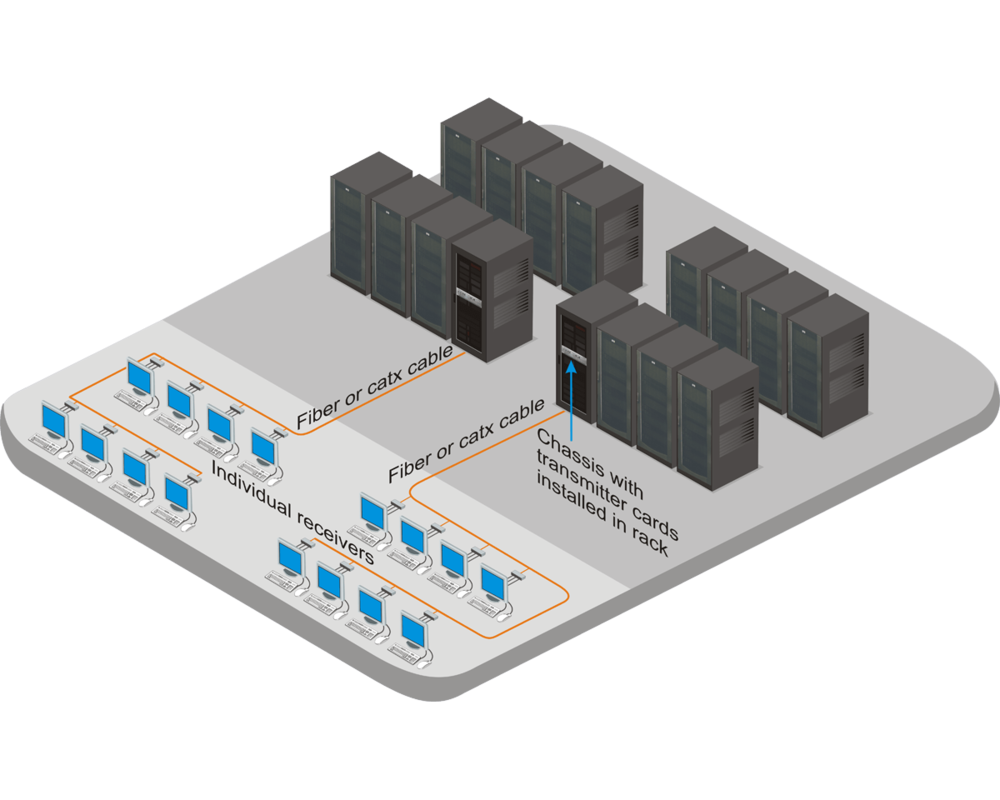

APPLICATION

PART NUMBERS

Product Part Number	Description
Orion XTender Chassis
OEE-CH21	Orion XT, 21 Slot Chassis, 1x PSU
OEE-CH21/RP	Orion XT, 21 Slot Chassis, Internal PSU, Setup for Redundancy Power, 4U
Orion XTender transmitter card (DVI-D+USB-HID)
OEC-SLDTXUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, CATx
OEC-SLDFMUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber MM
OEC-SLDFSUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM
OEC-SLDF3UD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM-3.125
OEC-SLD2CUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, 2x CATx, Redundant Link
OEC-SLD2MUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link
OEC-SLD2SUD1D/IRK	Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link
Orion XTender transmitter card (DVI-I+USB-HID)
OEC-SLDTXUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, CATx
OEC-SLDFMUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber MM
OEC-SLDFSUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber SM
OEC-SLDTXUD1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, CATx
OEC-SLDFMUD1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber MM
OEC-SLDFSUD1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM
OEC-SLDF3UD1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM-3.125
OEC-SLD2CUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link
OEC-SLD2MUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link
OEC-SLD2SUS1V/IRK	Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link
Orion XTender transmitter card (DVI-D dual-link +USB-HID)
OEC-SLDTXU1DL/IRK	Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, CATx
OEC-SLDFMU1DL/IRK	Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber MM
OEC-SLDFSU1DL/IRK	Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM
OEC-SLDF3U1DL/IRK	Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125
Orion XTender transmitter card (DVI-D dual video+USB-HID)
OEC-SLDTXU2SL/IRK	Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, CATx
OEC-SLDFMU2SL/IRK	Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber MM
OEC-SLDFSU2SL/IRK	Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM
OEC-SLDF3U2SL/IRK	Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125
Orion XTender transmitter card (HDMI+USB-HID)
OEC-SLDTXUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, CATx
OEC-SLDFSUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM
OEC-DLDTXUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out
OEC-DLDFSUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out
OEC-SLD2CUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, 2x CATx, Redundant Link
OEC-SLD2SUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link
OEC-DLD2CUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link
OEC-DLD2SUH1H/IRK	Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out, Redundant Link
OEC-SLDTX0H1H/IRK	Orion XT, Transmitter Card, HDMI, CATx
Orion XTender transmitter option card (USB 2.0)
OEC-SLDFS0H1H/IRK	Orion XT, Transmitter Card, HDMI, Fiber SM
OEC-SLDTXT000/IRK	Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), CATx
OEC-SLDFMT000/IRK	Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM
OEC-SLDFST000/IRK	Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM
Orion XTender transmitter option cards
OEC-L1H	Orion XT, Transmitter Optional Card, USB-HID (Max two devices)
OEC-L1E	Orion XT, Transmitter Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps)
OEC-LPS	Orion XT, Transmitter Optional Card, PS/2 KB/MS
OEC-L1AS	Orion XT, Transmitter Optional Card, Analog Audio + RS232
OEC-L1A422	Orion XT, Transmitter Optional Card, Analog Audio + RS422
OEC-L1DA	Orion XT, Transmitter Optional Card, Digital Audio
OEC-L2DA	Orion XT, Transmitter Optional Card, 2x Digital Audio
OEC-L1AS+1H	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID
OEC-L1AS+1E	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0
OEC-L1AS+PS	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2
OEC-L1A422+1H	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID
OEC-L1A422+1E	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0
OEC-L1A422+PS	Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2
OEC-L1DA+1H	Orion XT, Transmitter Optional Card, Digital Audio+RS232 + USB-HID
OEC-L1DA+1E	Orion XT, Transmitter Optional Card, Digital Audio+RS232 + Embedded USB 2.0
OEC-L1DA+1AS	Orion XT, Transmitter Optional Card, Digital Audio + Analog Audio+RS232
Orion XTender receiver card (DVI-D+USB-HID)
OEC-SRDTXUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, CATx
OEC-SRDFMUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, Fiber MM
OEC-SRDFSUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM
OEC-SRDF3UD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM-3.125
OEC-SRD2CUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, 2x CATx, Redundant Link
OEC-SRD2MUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link
OEC-SRD2SUD1D/IRK	Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link
Orion XTender receiver card (DVI-I+USB-HID)
OEC-SRD2CUS1V/IRK	Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link
OEC-SRD2MUS1V/IRK	Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link
OEC-SRD2SUS1V/IRK	Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link
Orion XTender receiver card (DVI-D dual-link+USB-HID)
OEC-SRDTXU1DL/IRK	Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, CATx
OEC-SRDFMU1DL/IRK	Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber MM
OEC-SRDFSU1DL/IRK	Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM
OEC-SRDF3U1DL/IRK	Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125
Orion XTender receiver card (DVI-D dual video+USB-HID)
OEC-SRDTXU2SL/IRK	Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, CATx
OEC-SRDFMU2SL/IRK	Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber MM
OEC-SRDFSU2SL/IRK	Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM
OEC-SRDF3U2SL/IRK	Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125
Orion XTender receiver card (HDMI+USB-HID)
OEC-SRDTXUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, CATx
OEC-SRDFSUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM
OEC-DRDTXUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out
OEC-DRDFSUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out
OEC-SRD2CUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, 2x CATx, Redundant Link
OEC-SRD2SUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link
OEC-DRD2CUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link
OEC-DRD2SUH1H/IRK	Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-B208Out, Redundant Link
OEC-SRDTX0H1H/IRK	Orion XT, Receiver Card, HDMI, CATx
Orion XTender receiver option card (USB 2.0)
OEC-QRDTXT000/IRK	Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), CATx
OEC-QRDFMT000/IRK	Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM
OEC-QRDFST000/IRK	Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM
Orion XTender receiver option cards
OEC-R1H	Orion XT, Receiver Optional Card, USB-HID (Max two devices)
OEC-R1E	Orion XT, Receiver Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps)
OEC-RPS	Orion XT, Receiver Optional Card, PS/2 KB/MS
OEC-R1AS	Orion XT, Receiver Optional Card, Analog Audio + RS232
OEC-R1A422	Orion XT, Receiver Optional Card, Analog Audio + RS422
OEC-R1DA	Orion XT, Receiver Optional Card, Digital Audio
OEC-R2DA	Orion XT, Receiver Optional Card, 2x Digital Audio
OEC-R1AS+1H	Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID
OEC-R1AS+1E	Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0
OEC-R1AS+PS	Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2
OEC-R1A422+1H	Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID
OEC-R1A422+1E	Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0
OEC-R1A422+PS	Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2
OEC-R1DA+1H	Orion XT, Receiver Optional Card, Digital Audio+RS232 + USB-HID
OEC-R1DA+1E	Orion XT, Receiver Optional Card, Digital Audio+RS232 + Embedded USB 2.0
OEC-R1DA+1AS	Orion XT, Receiver Optional Card, Digital Audio + Analog Audio+RS232
