TS-2408 Aggregation TAP
문의

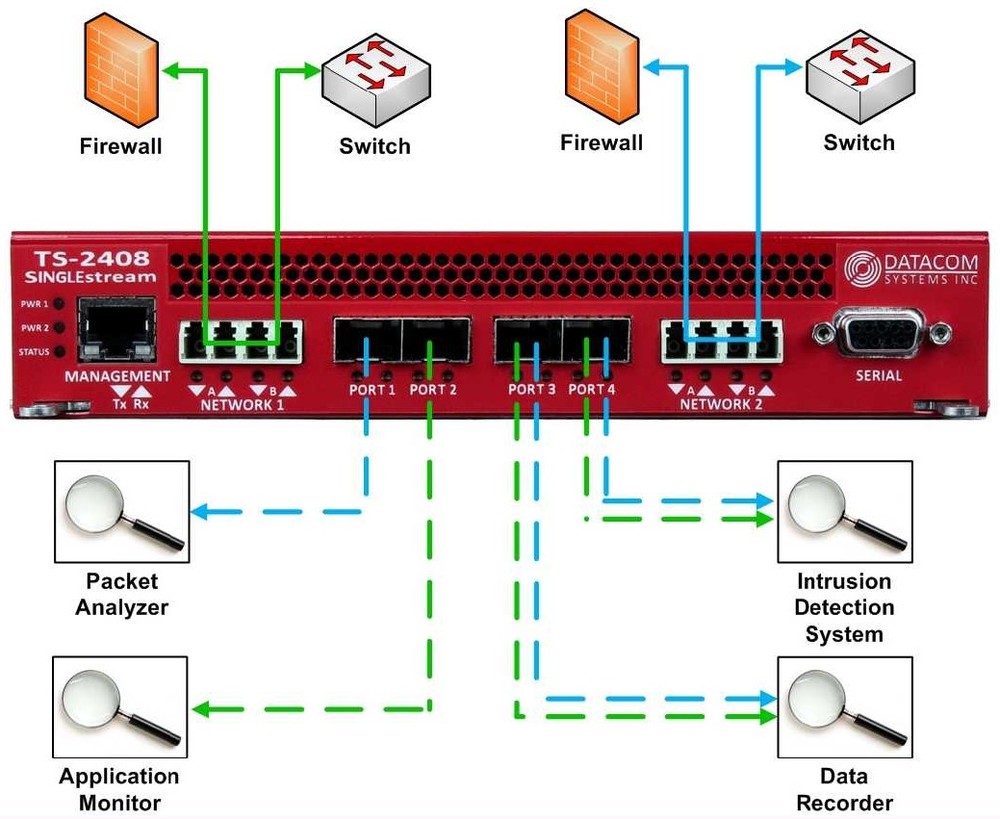

8 port 10G/1G Aggregation Network Tap.
Supports 2 tapped links, 4 any-to-any ports.
Supports 2 tapped links, 4 any-to-any ports.
FEATURES
- Aggregation/Regeneration: 여러 네트워크 링크 또는 채널을 하나의 스트림으로 결합하거나 연결된 여러 도구로 사본을 보내 데이터 소스를 공유
- 미디어 변환: 미디어 유형에 관계없이 기존 모니터링 도구 활용
- 1000Mbps~10Gbps 범위의 포트 속도
- 모든 기능이 활성화된 모든 포트: 포트/기능당 라이센스 없음
- 광범위한 CLI(telnet / SSH)를 사용하여 원격 또는 로컬로 장치 관리
- 이중 중복 전원 공급 장치로 가동 시간 모니터링
- 사용자정의 이벤트에 대한 이메일 이벤트 알림
- NTP 지원
- 로컬 Syslog 지원
SPECIFICATION
| Ports |
Tap Ports: Four (4) 10/1G Fiber Any-to-Any Ports: Four (4) SFP+/SFP (Supports SFP+ SR, LR, LRM, SFP SX, LX, BT) Management Port: RJ45 Console Port: DB9 |
| Insertion Loss |
Multimode (50/62.5 micron diameter) 50/50 = 4.2 dB Multimode (50/62.5 micron diameter) 70/30 = 3.0 / 6.7 dB Singlemode (9 micron diameter) 50/50 = 3.9 dB Singlemode (9 micron diameter) 70/30 = 2.2 / 6.3 dB |
| Power Requirements |
Dual Redundant Hot Swappable Power Supplies (Included) Maximum Power Consumption: Less than 90 Watts Individual Power Supply Rating: 100-240V ~50-60Hz 7A MAX |
| Certifications | CE, RoHS, ICES-0003 Class A |
| Dimensions (H x W x D) | 1.5 x 8.3 x 12.5 in (3.81 x 21.08 x 31.75 cm) |
| Weight | 3.75 lbs (1.7 kgs) |
| Environmental |
Operating Temperature: 32º to 104ºF (0º to 40ºC) Storage Temperature: -22º to 149ºF (-30º to 65ºC) Humidity: 5 to 90% non-condensing |
| Warranty |
One (1) Year Hardware Warranty included Advanced Replacement-Next Day, 3rd Business Day options available. |
ORDERING INFORMATION
| Product | Description |
| TS-2408-55-55 | Taps one link and outputs copies to 2 monitoring ports. Installed on a 50 micron 10G/1G fiber link. 50/50 split ratio. |
| TS-2408-56-56 | Taps one link and outputs copies to 2 monitoring ports. Installed on a 62.5 micron 10G/1G fiber link. 50/50 split ratio. |
| TS-2408-59-59 | Taps one link and outputs copies to 2 monitoring ports. Installed on a 9 micron 10G/1G fiber link. 50/50 split ratio. |
| Optional Equipment | |
| SFP+-SR/SX | 10G/1G Multimode Fiber Transceiver |
| SFP+-LR/LX | 10G/1G Singlemode Fiber Transceiver |
| SFP-SX | 1G Multimode Fiber Transceiver |
| SFP-LX | 1G Singlemode Fiber Transceiver |
| SFP-RJ45 | 1G Copper Transceiver |
| RMC-2C | Rack mount for TS-1406. Fits two units in a 1U chassis. |
| Model | Tap 1 Split Ratio | Tap 1 Diameter | Tap 2 Split Ratio | Tap 2 Diameter |
| TS-2408-55-55 | 50/50 | 50 Micron | 50/50 | 50 Micron |
| TS-2408-55-56 | 50/50 | 50 Micron | 50/50 | 62.5 Micron |
| TS-2408-55-59 | 50/50 | 50 Micron | 50/50 | 9 Micron |
| TS-2408-55-75 | 50/50 | 50 Micron | 70/30 | 50 Micron |
| TS-2408-55-76 | 50/50 | 50 Micron | 70/30 | 62.5 Micron |
| TS-2408-55-79 | 50/50 | 50 Micron | 70/30 | 9 Micron |
| TS-2408-56-56 | 50/50 | 62.5 Micron | 50/50 | 62.5 Micron |
| TS-2408-56-59 | 50/50 | 62.5 Micron | 50/50 | 9 Micron |
| TS-2408-56-75 | 50/50 | 62.5 Micron | 70/30 | 50 Micron |
| TS-2408-56-76 | 50/50 | 62.5 Micron | 70/30 | 62.5 Micron |
| TS-2408-56-79 | 50/50 | 62.5 Micron | 70/30 | 9 Micron |
| TS-2408-59-59 | 50/50 | 9 Micron | 50/50 | 9 Micron |
| TS-2408-59-75 | 50/50 | 9 Micron | 70/30 | 50 Micron |
| TS-2408-59-76 | 50/50 | 9 Micron | 70/30 | 62.5 Micron |
| TS-2408-59-79 | 50/50 | 9 Micron | 70/30 | 9 Micron |
| TS-2408-75-75 | 70/30 | 50 Micron | 70/30 | 50 Micron |
| TS-2408-75-76 | 70/30 | 50 Micron | 70/30 | 62.5 Micron |
| TS-2408-75-79 | 70/30 | 50 Micron | 70/30 | 9 Micron |
| TS-2408-76-76 | 70/30 | 62.5 Micron | 70/30 | 62.5 Micron |
| TS-2408-76-79 | 70/30 | 62.5 Micron | 70/30 | 9 Micron |
| TS-2408-79-79 | 70/30 | 9 Micron | 70/30 | 9 Micron |
